Product Overview
Boiling
Instant boiling water, ideal for tea, coffee, and quick cooking.
Filtered Chilled
The Ice Bank chilling system ensures a constant chilled temperature below 10°C.
filtered sparkling chilled
Say goodbye to plastic bottles. Our chiller and filter system provides refreshing sparkling chilled water.
Normal Hot
Standard hot water for daily kitchen tasks like washing dishes or preparing food.
Normal Cold
Regular cold water for all kitchen needs, ensuring full tap functionality.
Description
Digital 5-in-1 Sparkling Instant Boiling, Chilled Filtered Water Tap
Model: Aquatap Fizz Digital | C Shape | Finish: Brushed Nickel
The Digital Aquatap Fizz is a versatile, multifunctional tap that provides instant access to five distinct water dispensing options. Operated through a digital touch pad and mixer handle, this elegant tap combines functionality and style for your kitchen.
Included Components
- Digital Aquatap Fizz C Shape Tap: 5-in-1 functionality in a Brushed Nickel finish.
- 2.4L Boiler Unit: Compact and energy-efficient.
- Chiller and Sparkling Unit: Ensures chilled and carbonated water.
- Compact Water Filter: High spec fine micron filtration which removes impurities from your water and provides limescale protection for your boiler.
- WARNING – CO2 and Regulator will also need to be purchased if required to make the sparkling water. We have the following option available if required:
- Single regulator which is compatible with soda stream style screw top gas bottles.
Key features and functionality:
5-in-1 Functionality
- Filtered Boiling Water (98°C)
- Instantly access boiling water for tea, coffee, or cooking.
- Adjustable temperature settings for customised use.
- Filtered Carbonated and Chilled Water
- Enjoy freshly dispensed sparkling water with optimal carbonation.
- Offers an instant draw-off of 2.7 litres of chilled water and delivers up to 15 litres of sparkling water per hour.
- Note: CO2 bottles for sparkling water must be purchased separately.
- Filtered Chilled Water
- Crisp, clean water filtered to remove impurities.
- Unfiltered Hot Water
- Access your household’s hot water supply directly.
- Unfiltered Ambient Water
- Dispenses room-temperature water directly from your cold water supply.
Key Features:
2.4-Litre Boiler Unit – Energy Efficient
- Heats water to 98°C quickly, with adjustable temperature options.
- Supplies instant hot water for 8-10 mugs, saving time in the kitchen.
Chiller & Sparkling Unit
- Compact under-counter design with digital display for easy use with simple setting controls.
- Carbonator ensures excellent sparkling water quality.
Single Filtering System
- Nano phosphate filter prevents limescale build-up and removes bacteria, chlorine, and other impurities.
Design and Installation
- Tap features 180-degree limited rotation for flexibility and reach.
- Requires a pressure reducing valve (included) set to 3 bar on the cold water inlet pipe.
Safety Features
- Digital Touch Pad Lock: Prevents accidental use of boiling water.
- Boiling Water Function: Needs to be unlocked via separate button before it can be activated.
- Insulated Spout: Remains cool to the touch for added safety.
Warranty
- Tap: 5 years.
- Boiler Unit: 2 years.
- Chiller & Sparkling Unit: 1 year.
Maintenance Note: Filters must be replaced every 6 months to maintain the warranty and ensure optimal performance.
WARNING – PLEASE NOTE THAT THE CUPBOARD MUST BE VENTILATED TO ALLOW SUFFICIENT AIRFLOW TO STOP THE CHILLER OVERSHEATING.
Specifications
Digital 5-in-1 Tap Specification:
- Mounting: Deck or sink mount (35mm hole required)
- Tap Handle Clearance: Minimum distance from the centre of the tap hole to the wall is 80 mm
- Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
- Cartridges: Quarter turn ceramic cartridges for ease of use and long service life
- Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
- Levers:
- Right-hand side Hot/Cold water lever – easy to use single lever

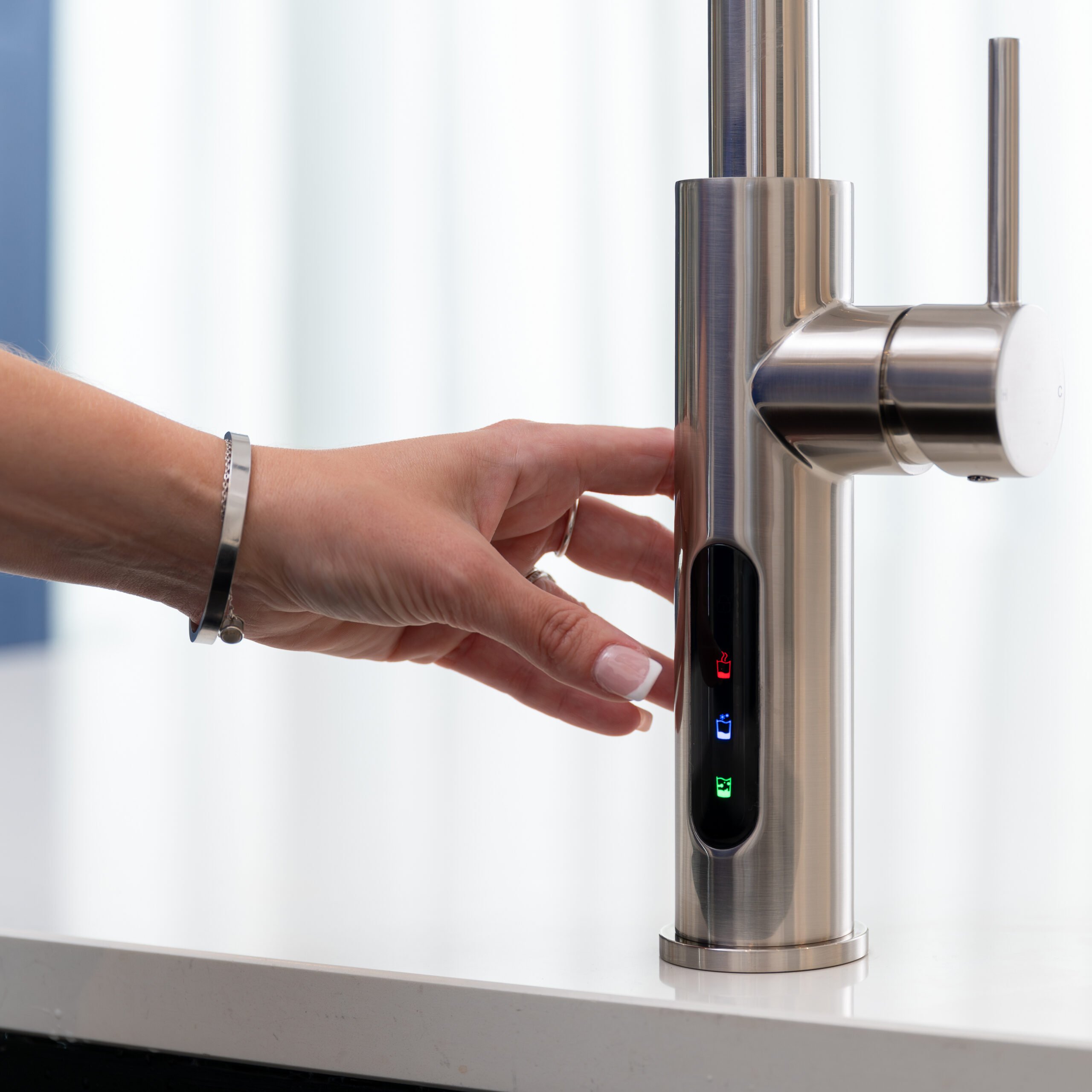

- Digital Touch Pad:
- WHITE LED: Hold 3s to unlock water functions. Prevents accidental activation of the boiling water function
- RED LED: Tap to start/stop boiling water.
- BLUE LED: Tap to start/stop chilled water.
- GREEN LED: Tap to start/stop sparkling water.
- Installation: Flexible connecting hoses and tap fixing kit included. 3 electric sockets required: Boiler, Chiller and Junction Box.
- Guarantee: 5 years
Tap Dimensions:
- Height: 397.3mm
- Spout Reach: 200mm
- Spout Width: 28mm
- Tap Hole: 35mm
————————————
2.4 litre Boiler Specification:
- Display: Front view digital touch screen – easy to read and use
- Installation: Simple and quick, normally takes no more than one hour depending on existing plumbing
- Capacity: 2.4 litres (sufficient for 7-8 cups of tea or coffee)
- Water Pressure: Minimum 1.5 bar, maximum 5.0 bar
- Temperature Range: Pre-set 55°C to 98°C with thermostat accuracy to plus/minus 0.5°C
- Heat Up Time: Approximately 8 minutes for cold water
- Materials:
- Outer Casing: Powder coated mild steel
- Inner Tank: Stainless steel
- Insulation: Latest technology for maximum energy efficiency
- Guarantee: Tank has a 2 year guarantee
Boiler Dimensions:
- Height: 262mm
- Width: 196mm
- Depth: 196mm
Boiler Electrical Data:
- Standard 13 amp detachable cable
- Voltage: 220-240 volt
- Power Rating: 1.5kw
————————————
Single Filter System Specification:
- Function: Filters water, protects tank from limescale build up, and improves boiling water taste
- Filter: Nano phosphate filter to prevent limescale in the tank. Removes bacteria, chlorine, and other particles
- Installation: Fits neatly under the sink with easy installation
- Replacement Cycle: Estimated every 6 months or 2000 litres of water. Whichever comes sooner.
- Filter Housing Dimension:
- Height: 295mm
- Width: 80mm
What does our filter remove?
- Chlorine: 99.5%
- Trichloromethane: 95.78%
- Lead: 98.4-99.2%
- Arsenic: 97.8%-86.7%
- Iron: 99.5%
- Manganese: 98.7%
*Free Delivery is offered to UK Mainland destinations only. We will add a delivery charge to below destinations:
- Scottish Islands
- Scottish Highlands
- Northern Ireland
- Isle of Man, Jersey and Guernsey
————————————
Chiller and Sparkling unit
Dimensions:
- Height: 316mm
- Width: 188mm
- Depth: 440mm
Design:
- Designed for small under-counter spaces.
Ventilation:
- Adequate ventilation is crucial to ensure optimal performance and prevent premature failure.
- Ventilation grills are supplied free of charge to allow proper airflow through cupboard doors.
- Poor ventilation may void the warranty.
- Avoid installation in areas with ambient temperatures exceeding 30°C or near high humidity or heat sources.
Ice Bank Chilling System:
- Ensures a constant chilled temperature, adjustable between 4°C and 14°C.
- Operates effectively with an incoming water temperature of 10–32°C and a room temperature of up to 25°C.
- Important: Ensure the tank is filled with water before turning the Cooler on. Operating without water will damage the Chilling Unit.
Carbonator:
- Offers an instant draw-off of 2.7 litres of chilled water and delivers up to 15 litres of sparkling water per hour.
- Requires a gas regulator to connect to the CO² cylinder. Only CO² cylinders up to a maximum of 2 kg are supported.
- Cylinders must be operated vertically and secured against tipping over.
- Regulator and CO2 not included but are sold separately.
Electrical Data:
- Voltage: 220V AC/50Hz
- Power Rating: 160–240 W
- Sound Pressure Level: 40–50 dB
Installation:
- Indoor use only.
- Must not be installed in areas where water jets could be used.
- Allow at least 24 hours after transportation before turning on the unit to ensure proper fluid redistribution.
- A tilt of less than 2° is required for safe operation.
Maintenance:
- Replace the filter cartridge every 6 months.
Regularly inspect for leaks or damage. If found, isolate the unit, drain, and contact the manufacturer.
Installation Video
Installation Guide & Diagrams
Product Enquiry
Contact Us for Comprehensive Information on Features, Specifications, and Technical Details.
Reviews
Digital Aquatap FIZZ features electronic Touch Pad on the tap for easy and intuitive operation
WHITE Led: Lock
RED LED: FILTERED BOILING WATER
BLUE LED: FILTERED Chilled WATER
GREEN LED: FILTERED SPARKLING CHILLED WATER
