Aquatap Ultimo 6-in-1 Digital Boiling Water Tap with Chilled & Sparkling Filtered Water

Aquatap Ultimo 6-in-1 Digital Tap – Full Specification

Tap Specification:

General Features

• Mounting: Deck or sink mounted (35 mm tap hole required)

• Tap Handle Clearance: Minimum 80 mm from the centre of the tap hole to the wall

• Material: High-quality brass construction for durability and long service life

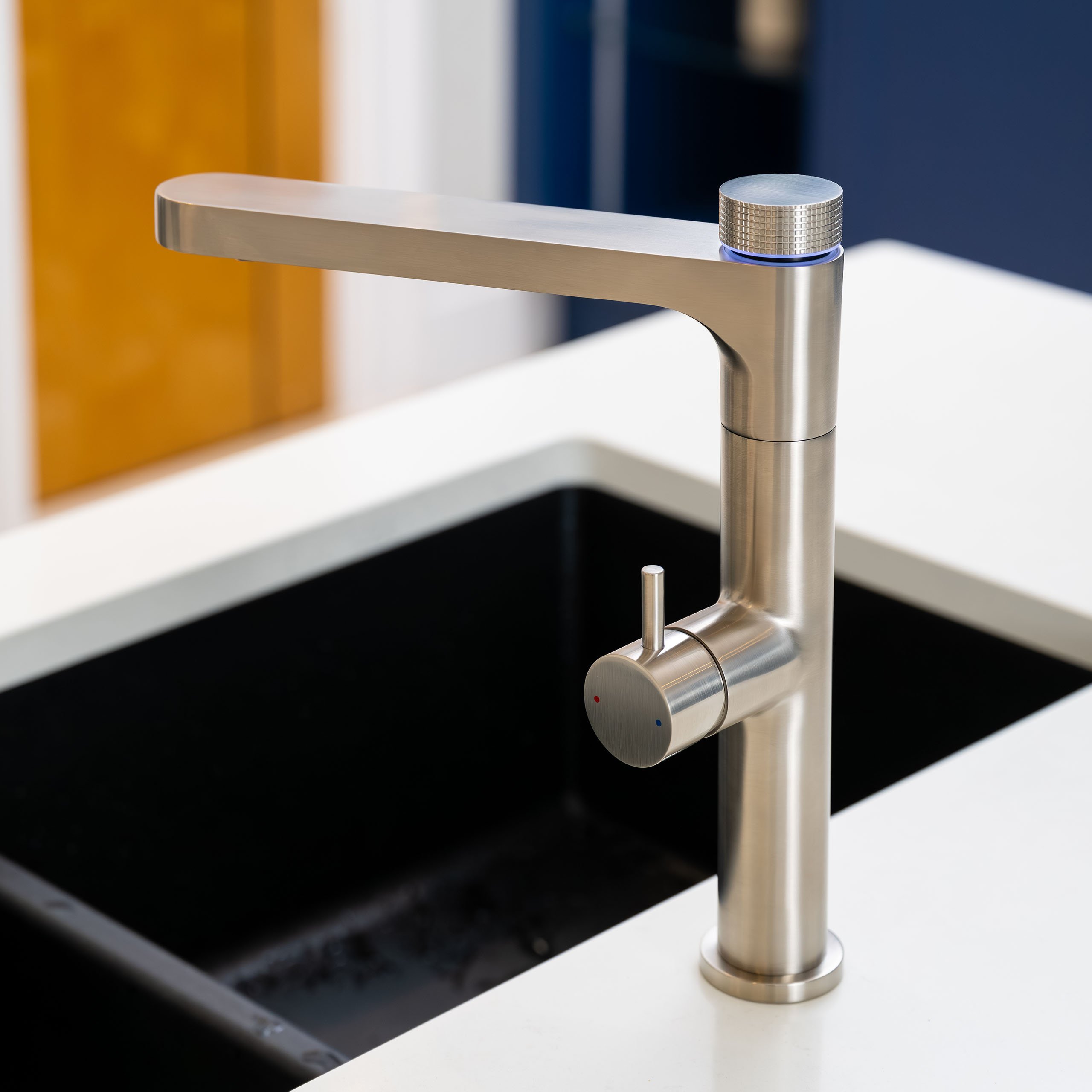

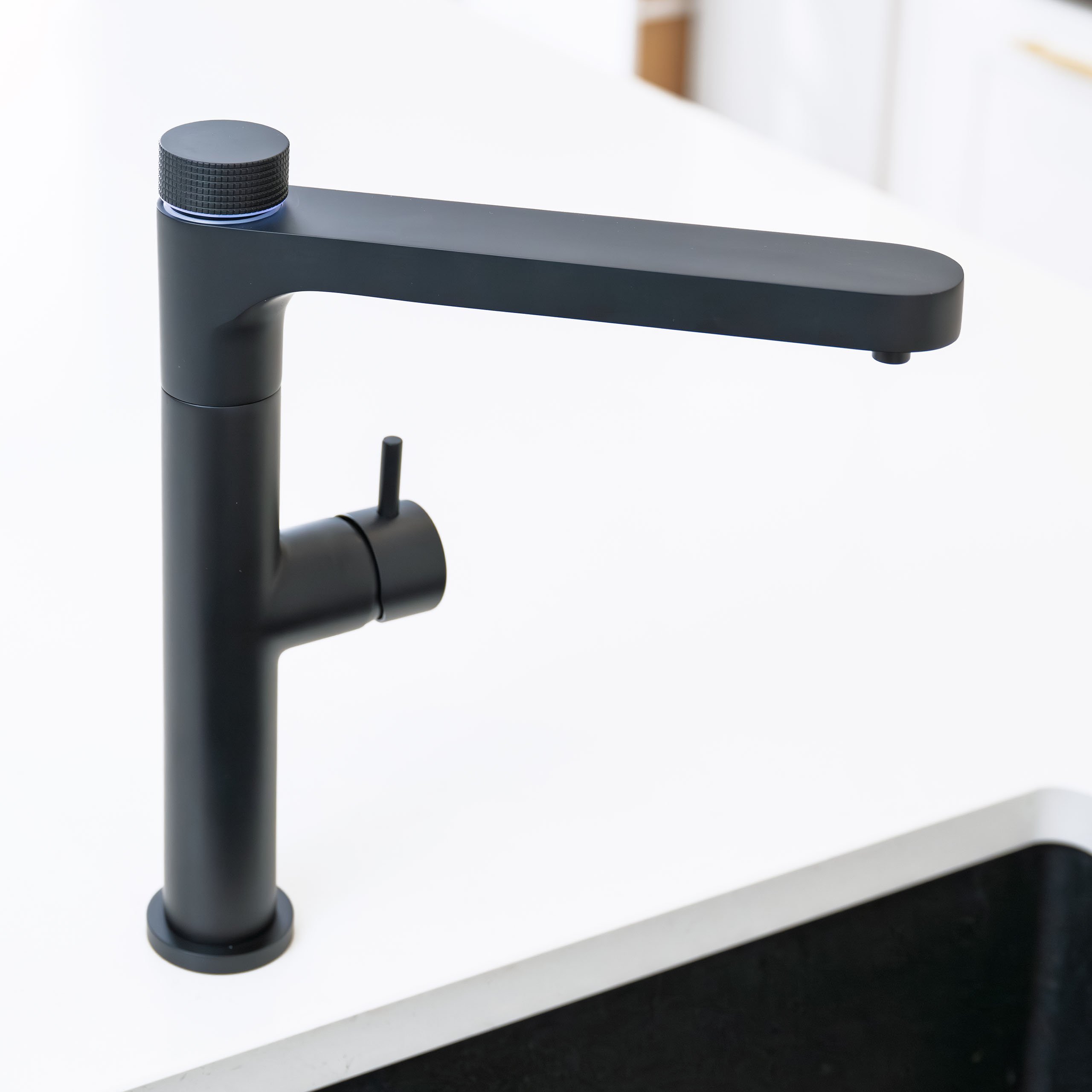

• Design: Elegant C-Shape neck

Spout & Flow

• Spout Insulation: Cool-touch spout for safe boiling water dispensing

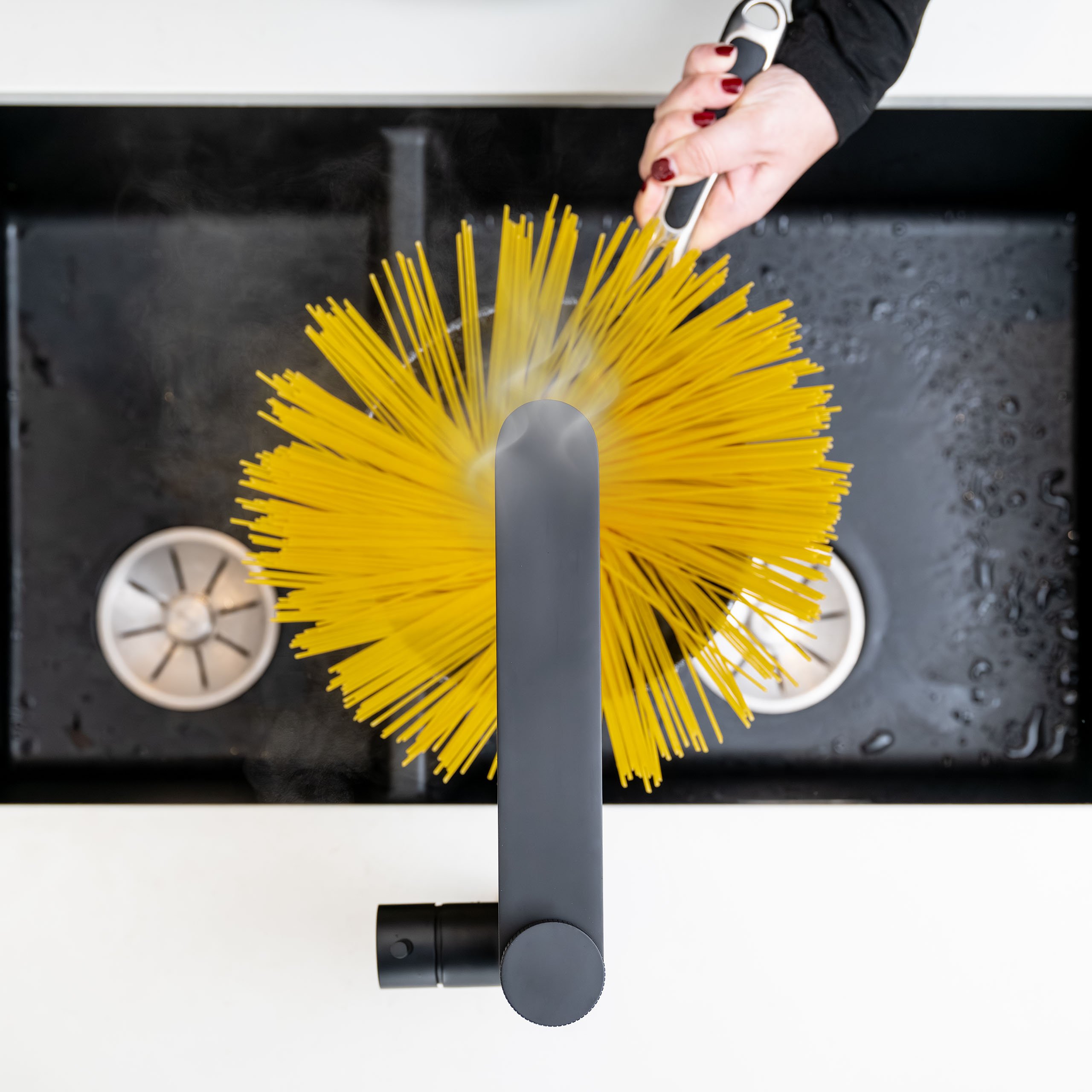

• Spout Rotation: 90° swivel spout for maximum flexibility

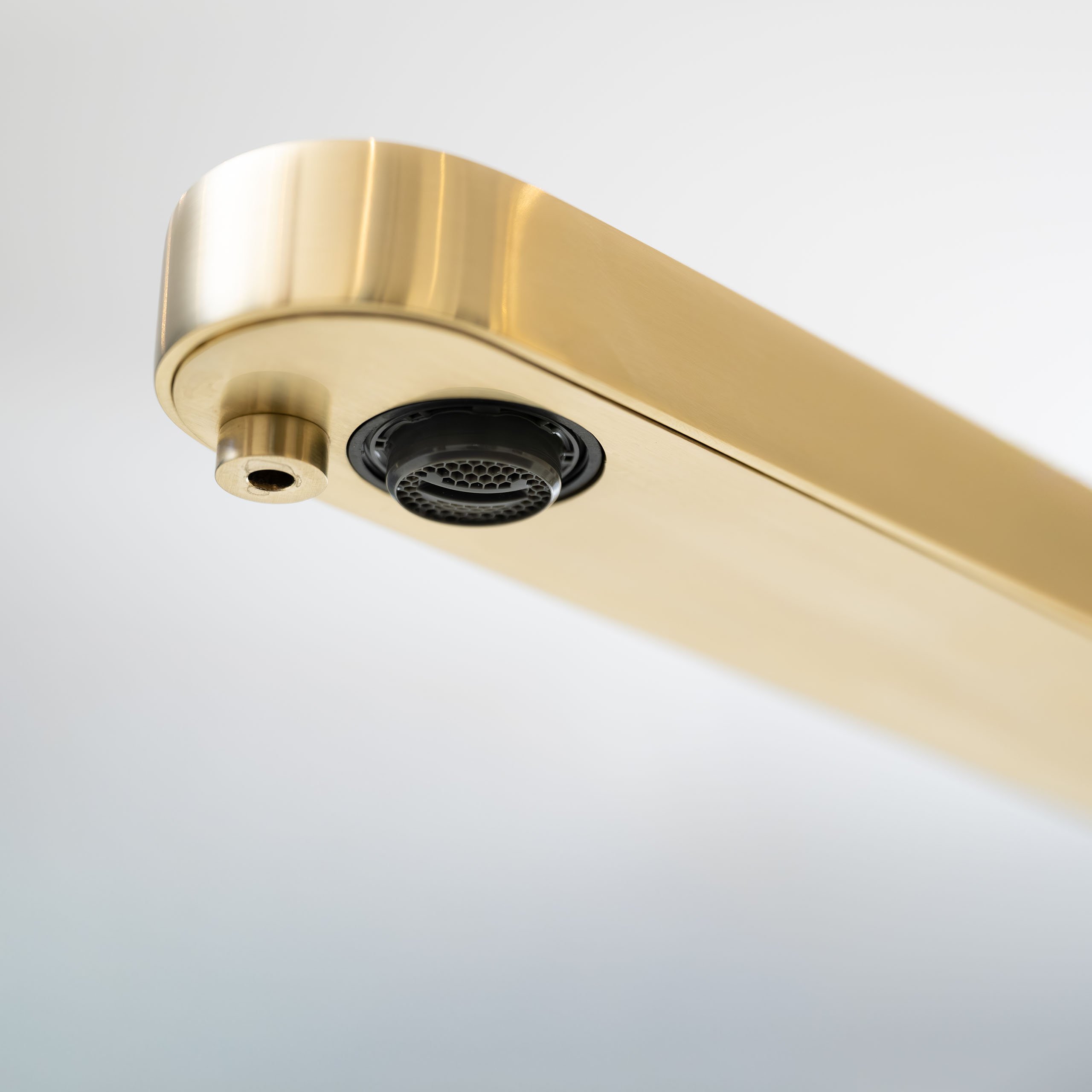

• Aerator: Integrated aerator fitting for smooth water flow

Cartridges & Operation

• Cartridges: Quarter-turn ceramic cartridges for precise control and long service life

Tap Controls

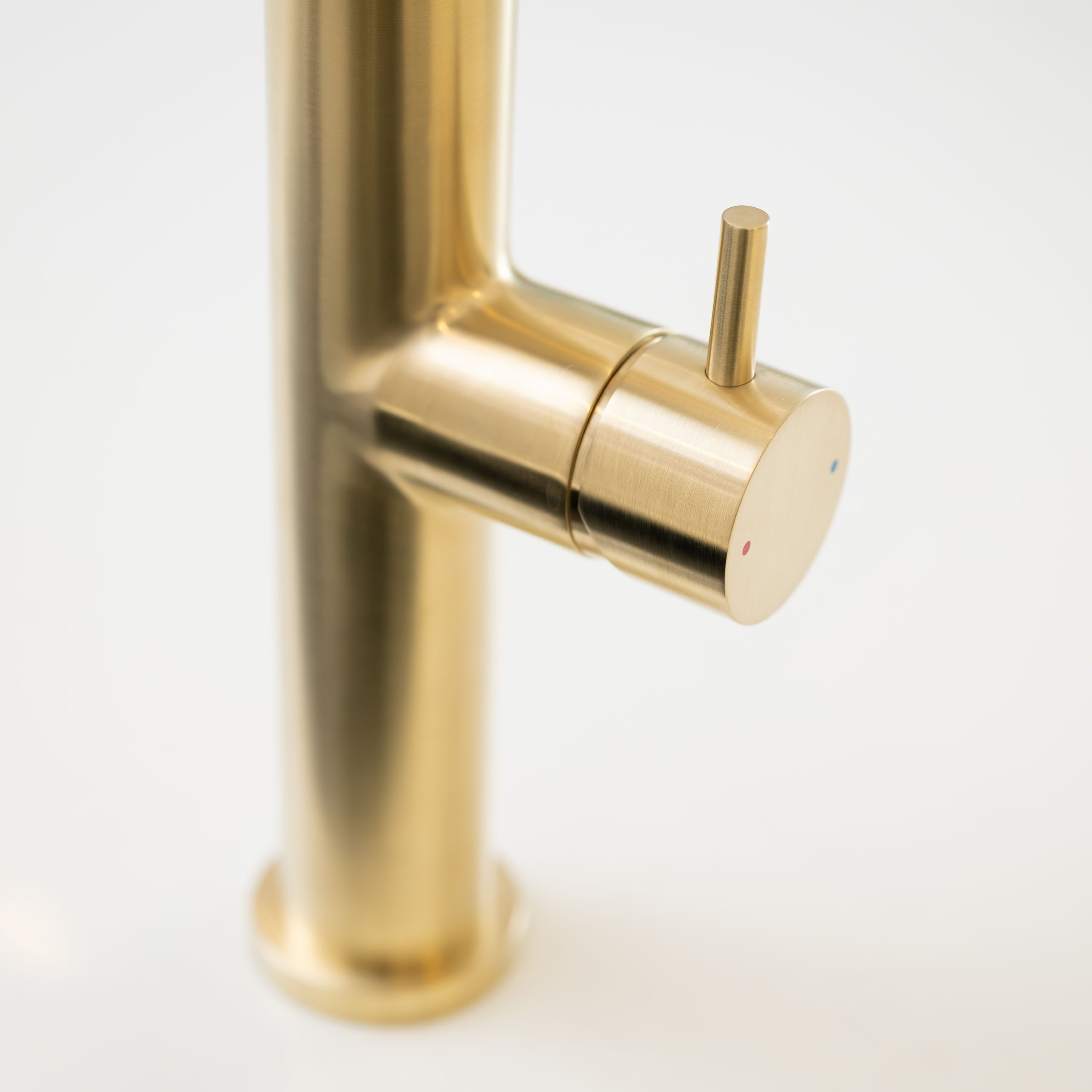

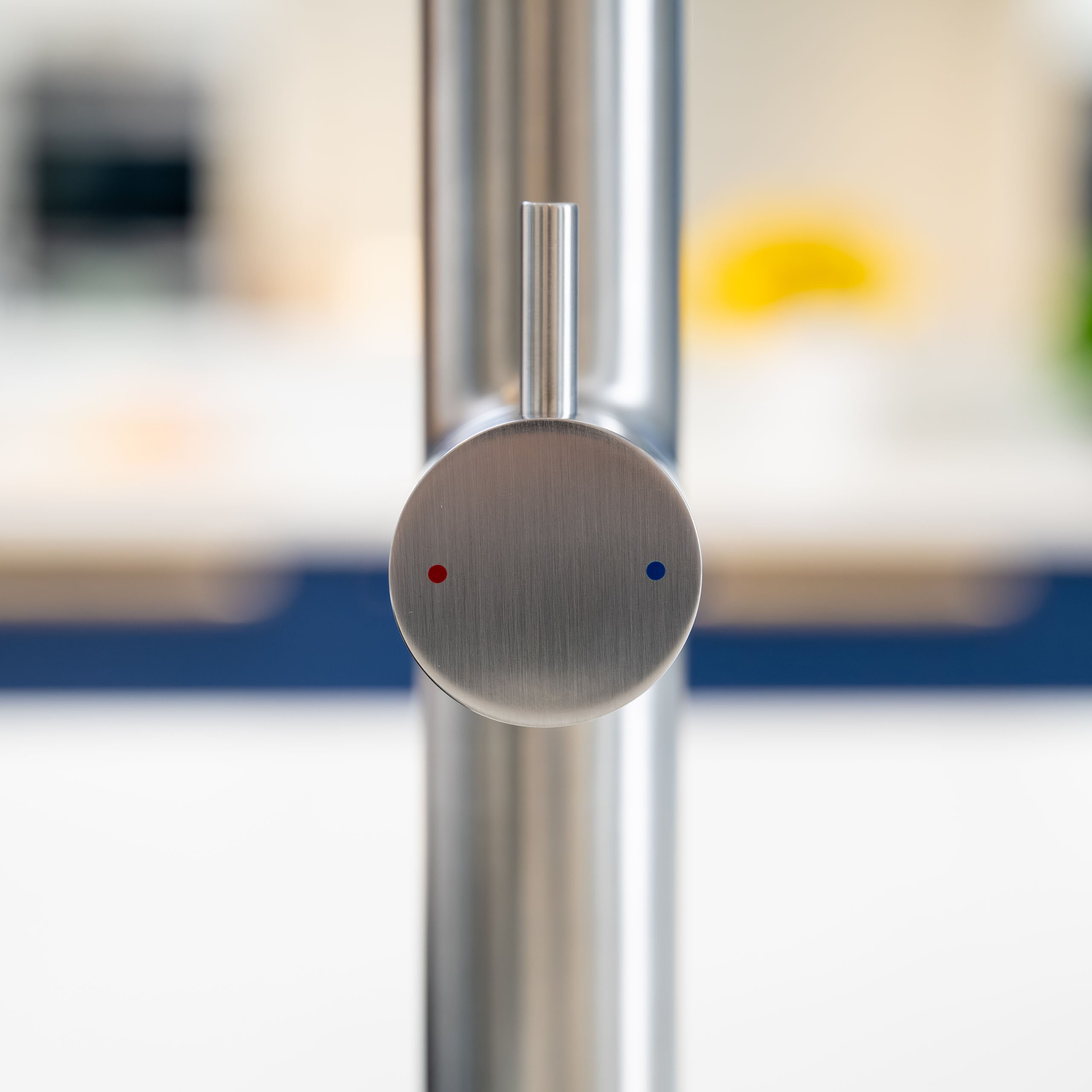

• Right Lever: Hot and cold water single-lever mixer for everyday use

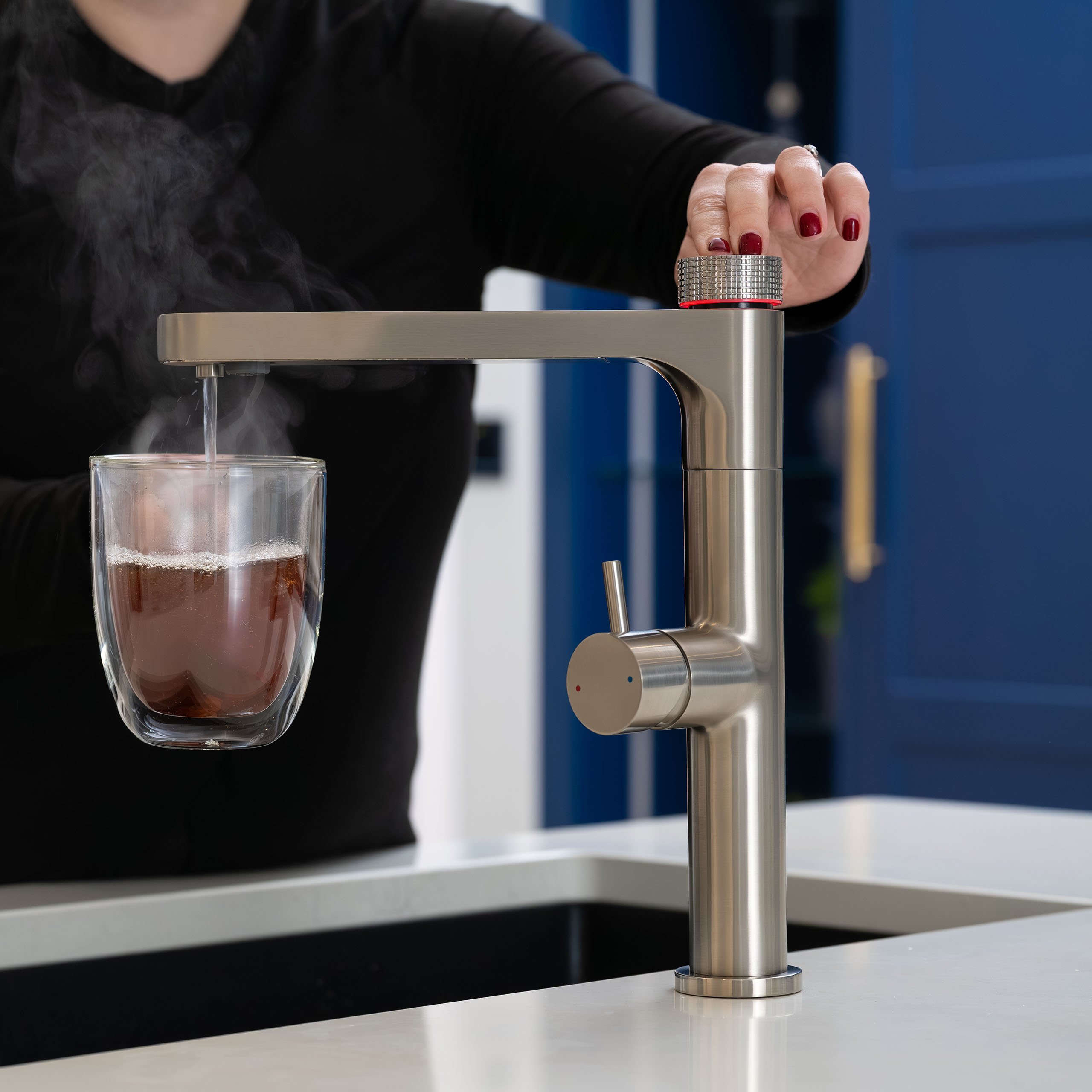

• Left Lever: Spring-loaded safety handle with child safety lock for boiling water

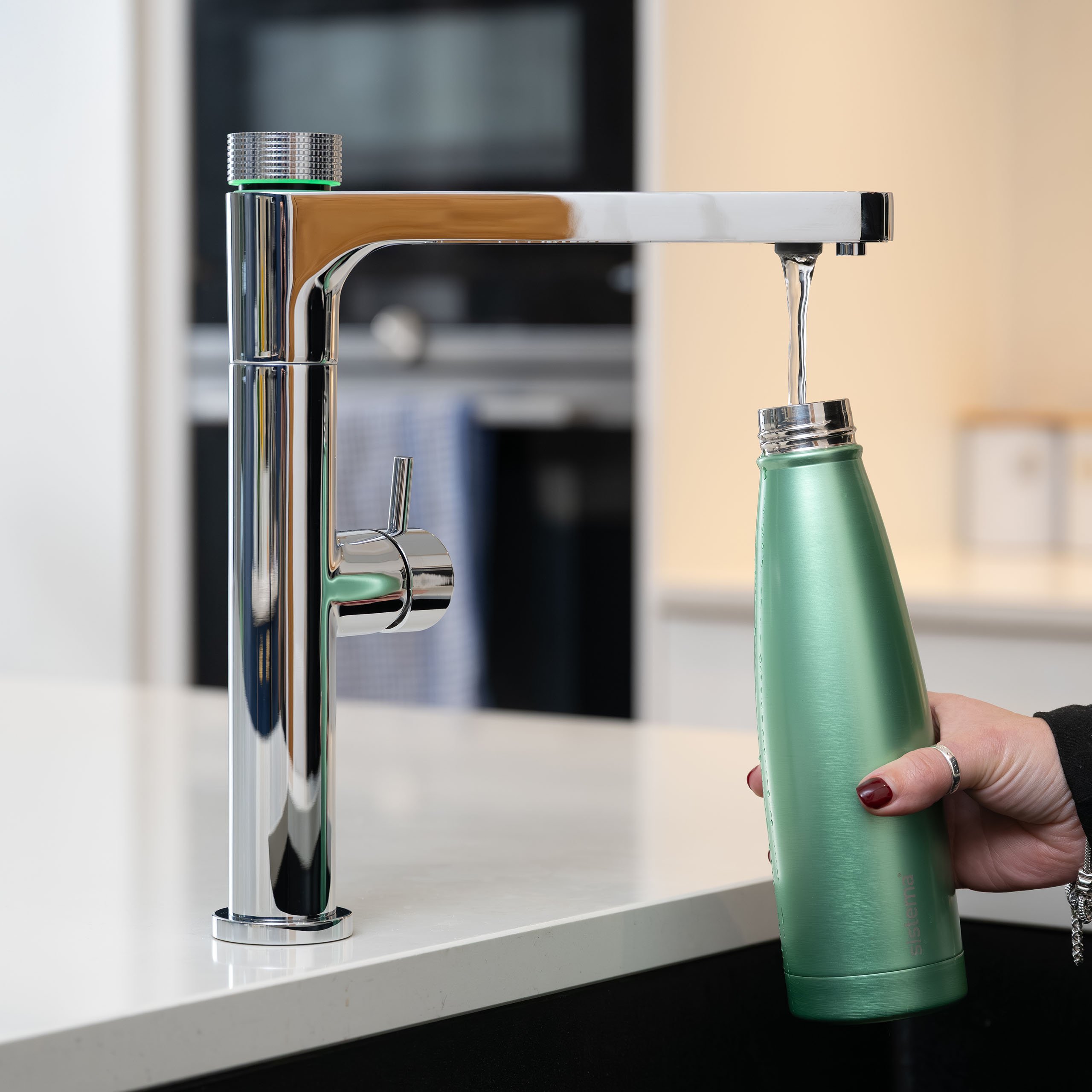

• Additional Feature: Opposite twist function for filtered cold water dispensing

Installation:

• Flexible connection hoses included

• Tap fixing kit supplied for installation

Water Pressure Requirements:

• Minimum Pressure: 1.5 bar

• Maximum Pressure: 5.0 bar

Guarantee:

• Tap guarantee: 5 years

Tap Dimensions

• Height: 306.7 mm

• Reach: 222 mm

• Spout Width: 42 mm

• Spout Height: 260.5 mm

• Tap Hole Requirement: 35 mm

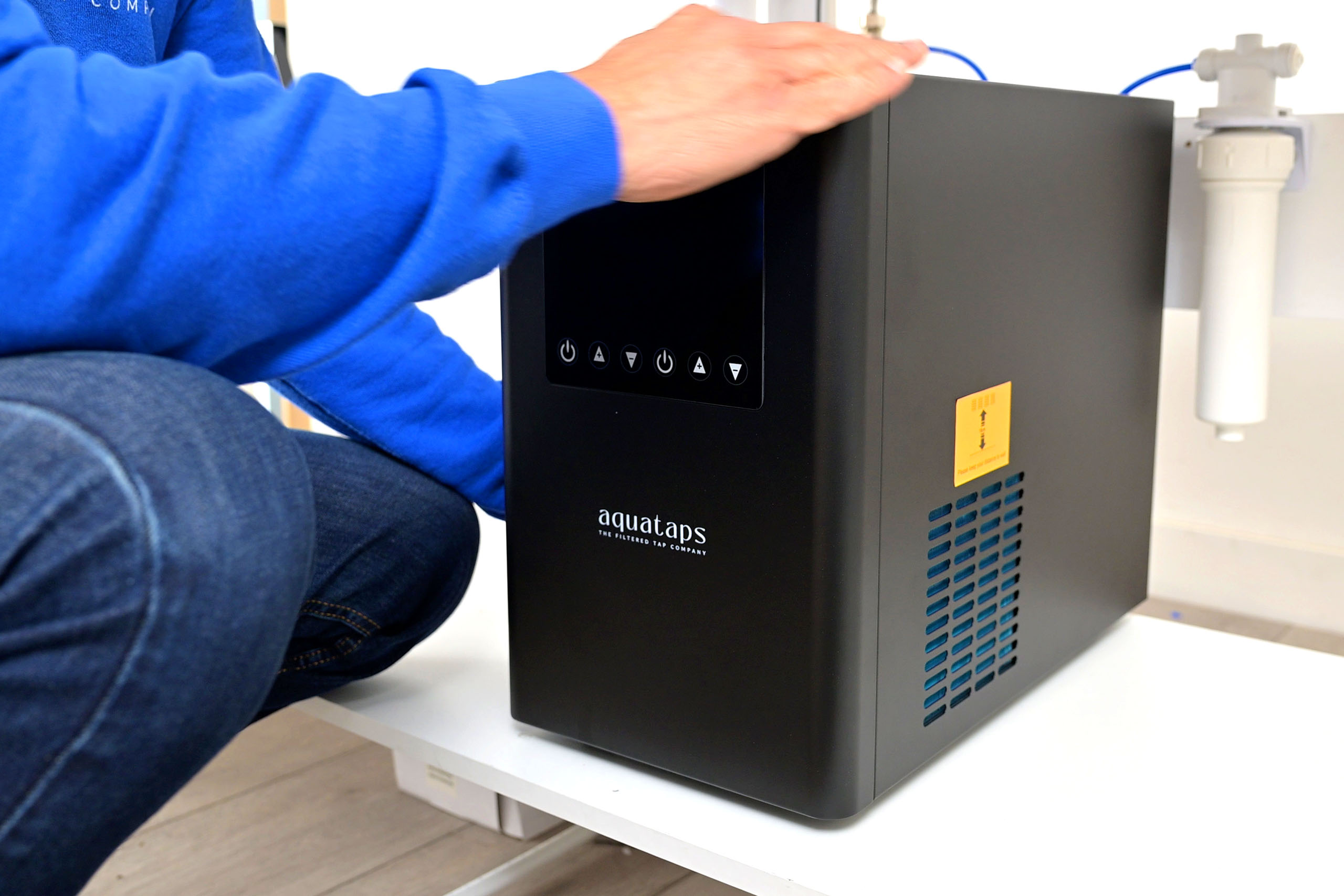

Integrated Under-Sink Boiler & Chiller – System Specifications:

Boiler System

• Boiling Tank Capacity: 2.4 litres (approx. 7–8 cups of tea or coffee)

• Maximum Temperature: 98°C

• Temperature Adjustment Range: 60°C – 98°C

• Boiling Water Output: Approx. 8–10 cups

• Reheat Time: Approx. 15 minutes

• Temperature Control Accuracy: ±0.5°C thermostat precision

Chiller System

• Chilled Water Tank Capacity: 2.2 litres

• Chilled Water Temperature: 3°C – 10°C

• Cooling Performance: 11.5 litres per hour below 10°C (at 20°C incoming water temperature)

• Cold Water Tank Material: Stainless steel – 1.95 litres

• Thermostat Setting: Factory set between 3°C and 10°C (do not adjust)

• Refrigeration System: R-600a refrigerant – 16 g

Water Functions

• Filtered Boiling Water

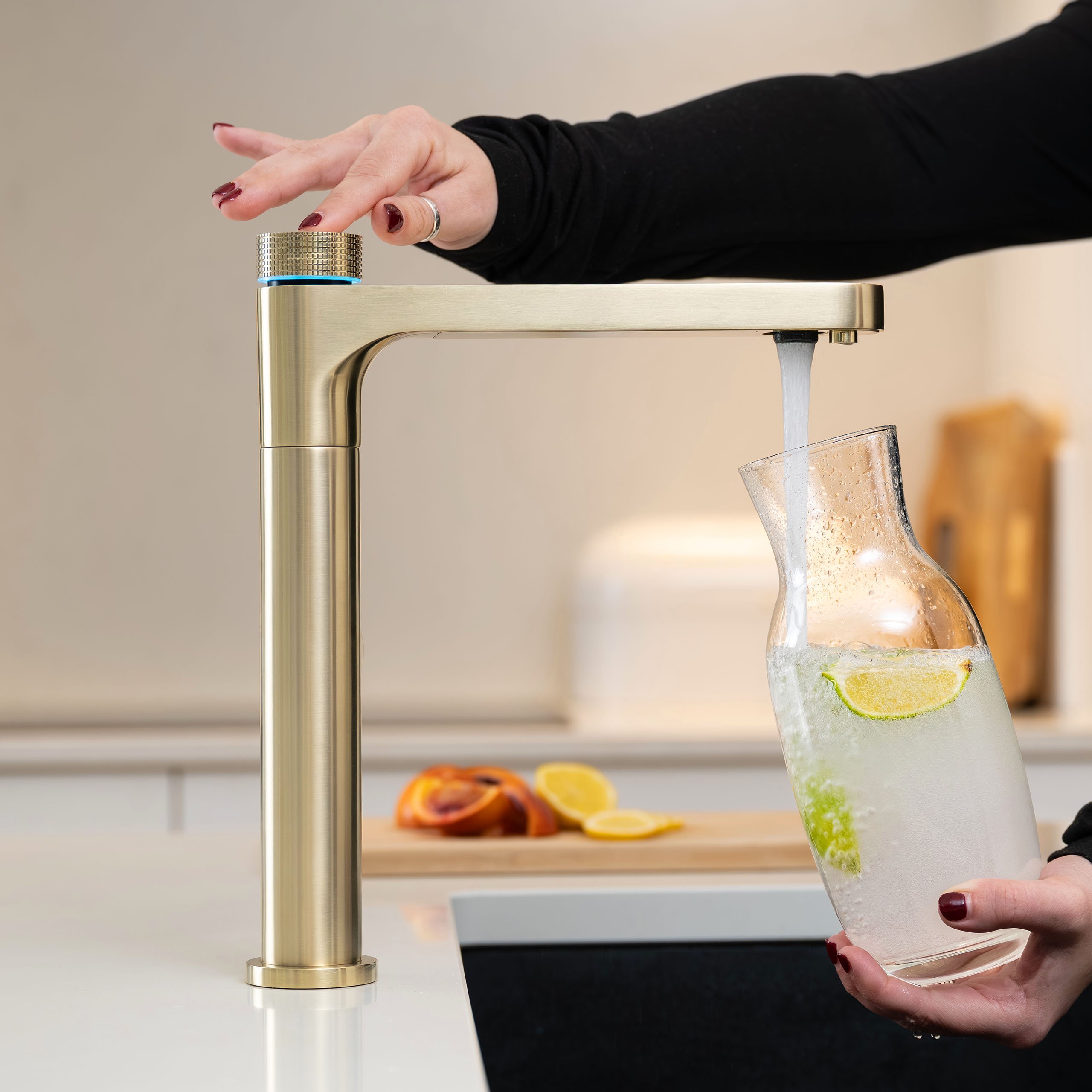

• Filtered Chilled Sparkling Water

• Filtered Chilled Water

• Filtered Ambient Water

• Hot Water

• Cold Water

Control & Display

• Digital Touchscreen Display: Front-facing digital control panel designed for clear visibility and simple operation

Water Pressure Requirements

• Minimum Pressure: 1.5 bar

• Maximum Pressure: 5.0 bar

Energy Efficiency

• Advanced thermal insulation technology designed to maximise energy efficiency

Ventilation Requirements

• Minimum clearance required: 50 mm on all sides

Proper ventilation is essential for correct chiller performance.
All chillers require sufficient airflow to operate efficiently. Without adequate ventilation, performance may be reduced and premature failure may occur.

Aquataps provides ventilation grids free of charge for kitchen doors to ensure correct airflow.

Failures caused by insufficient ventilation are not covered under the Aquataps warranty.

System Guarantee

• Integrated boiler and chiller unit guarantee: 2 years

Dimensions

• Height: 372 mm

• Width: 242.3 mm

• Depth: 422.3 mm

Weight

• 12.5 kg

Electrical Specifications

• Power Supply: Standard UK 13A detachable cable

• Voltage: 220–240 V

• Power Rating: 1.5 kW

Single Filter System Specification

Function

The filter protects the tank from limescale build-up, improves water taste, and filters impurities from the water supply.

Filter Type

• Nano-phosphate filter technology

• Helps prevent limescale build-up inside the tank

• Removes bacteria, chlorine, and other contaminants

Installation

• Compact under-sink installation

• Simple and quick to replace

Replacement Cycle

• Recommended replacement: every 6 months

Filter Housing Dimensions

• Height: 295 mm

• Width: 80 mm

Contaminant Removal Performance

• Chlorine: 99.5%

• Trichloromethane: 95.78%

• Lead: 98.4% – 99.2%

• Arsenic: 86.7% – 97.8%

• Iron: 99.5%

• Manganese: 98.7%
