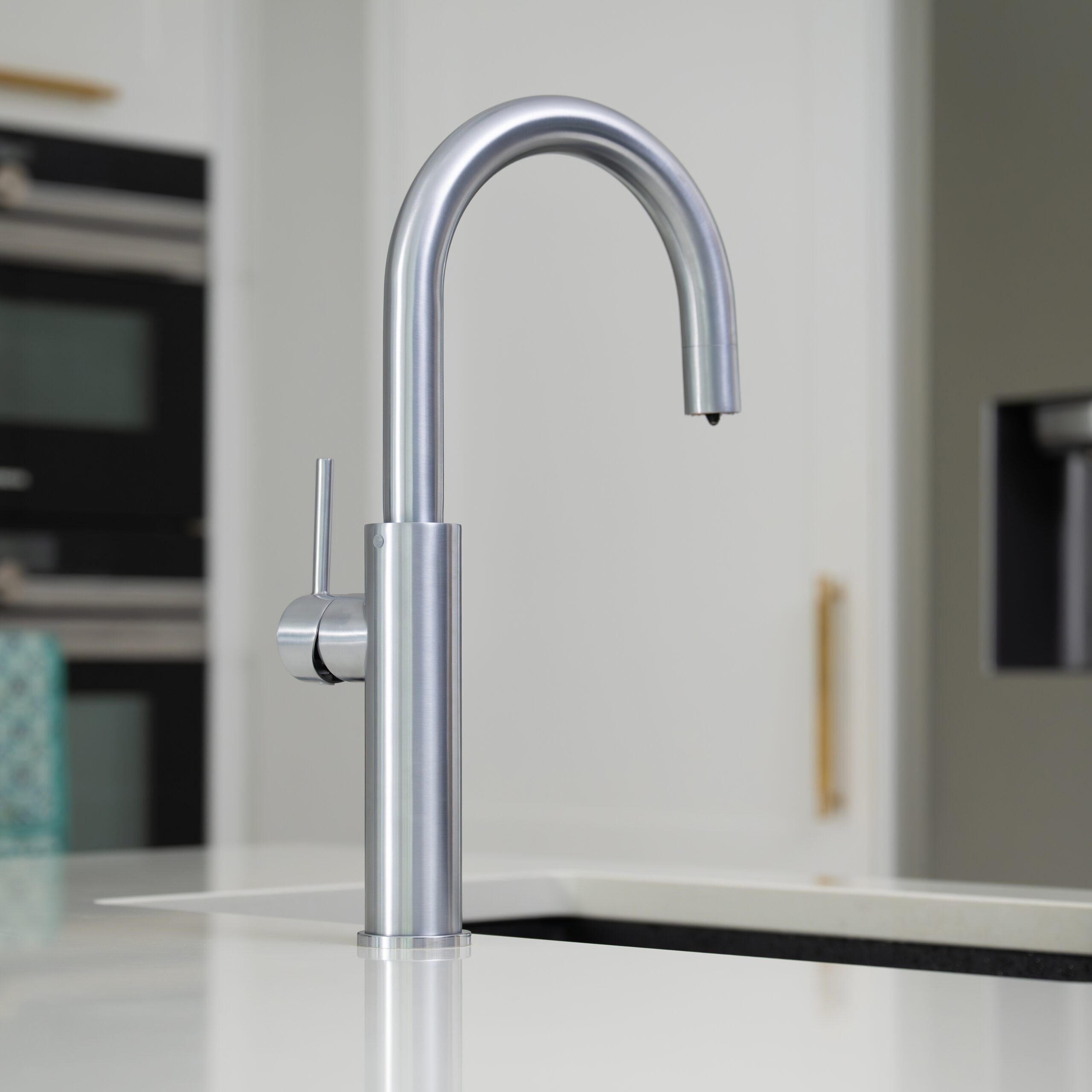

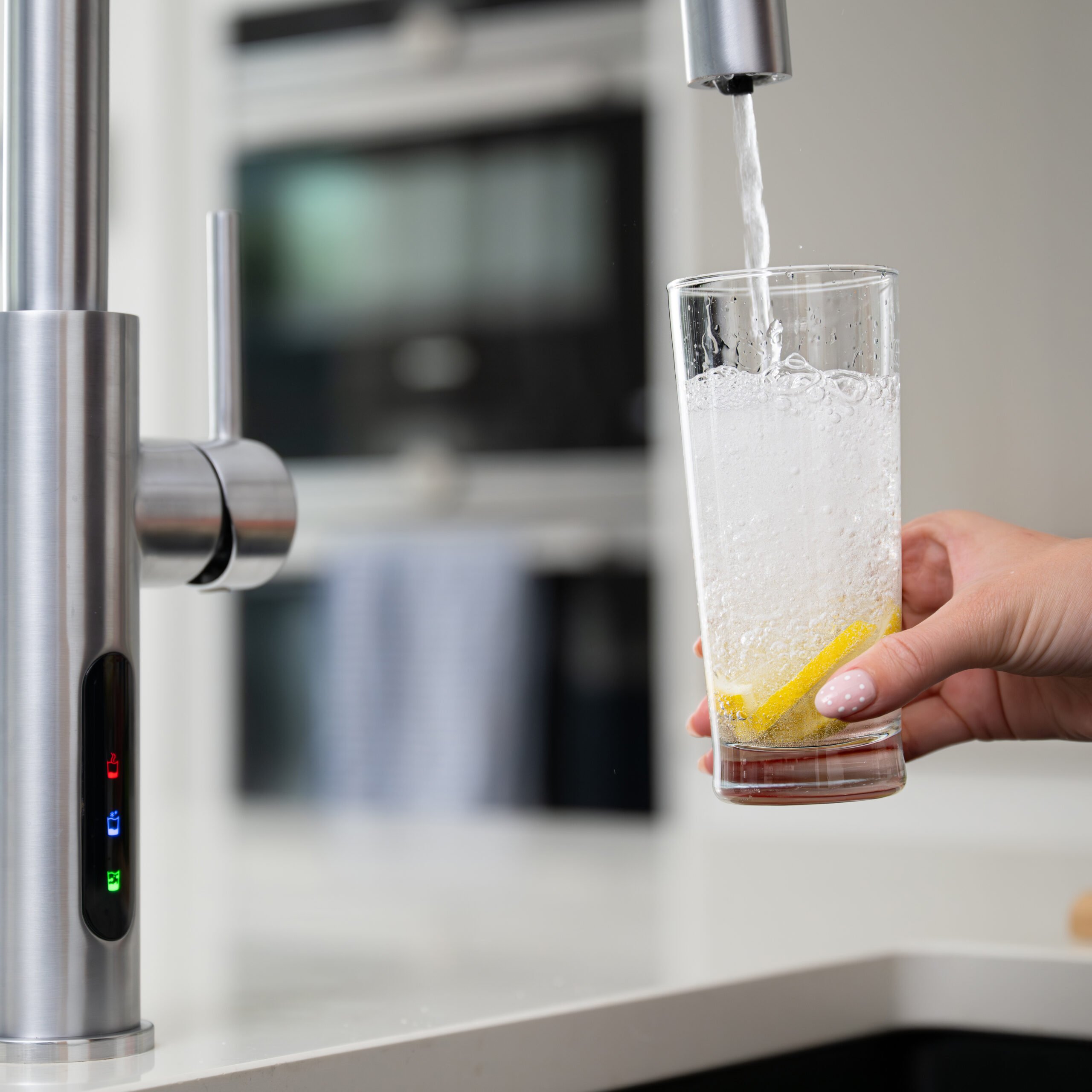

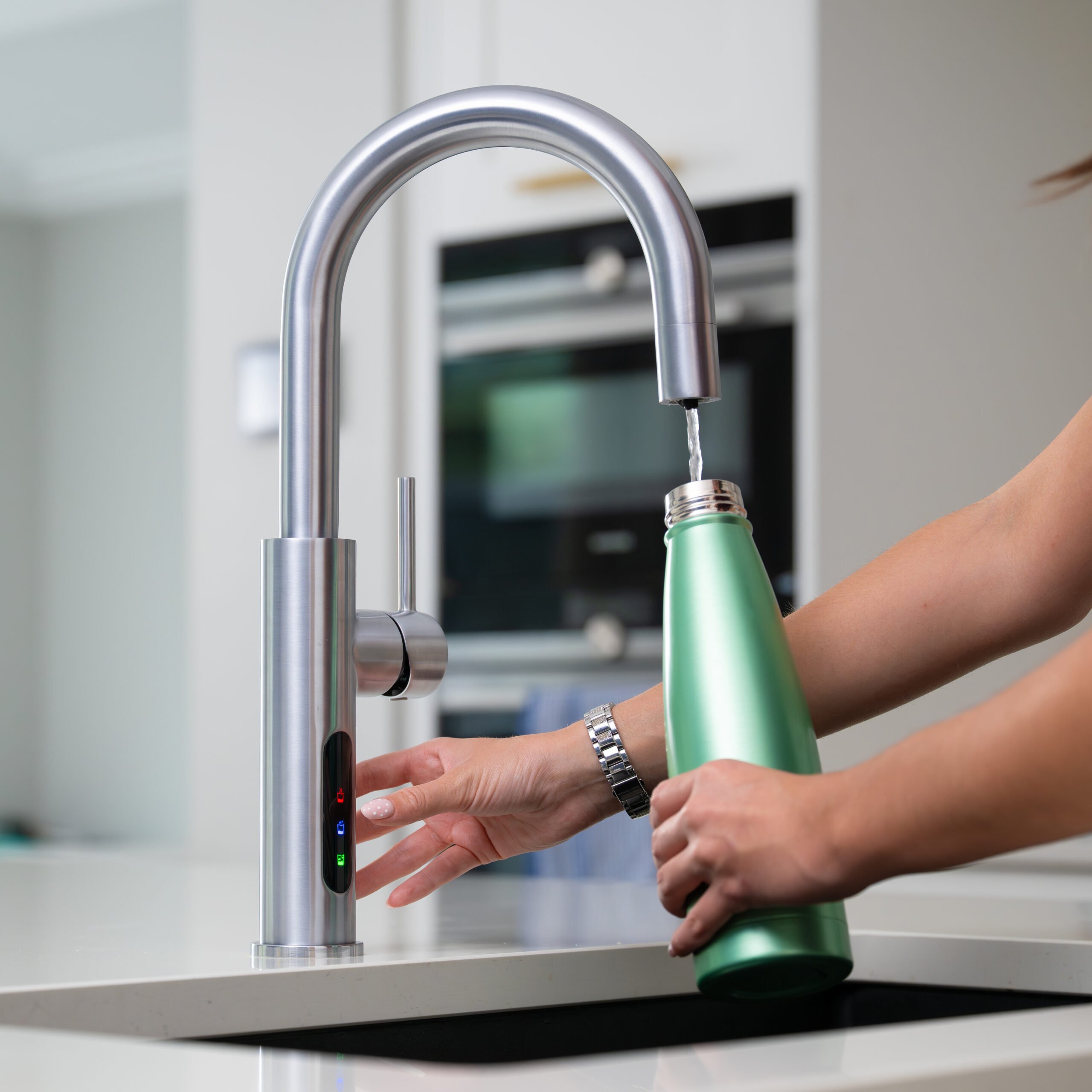

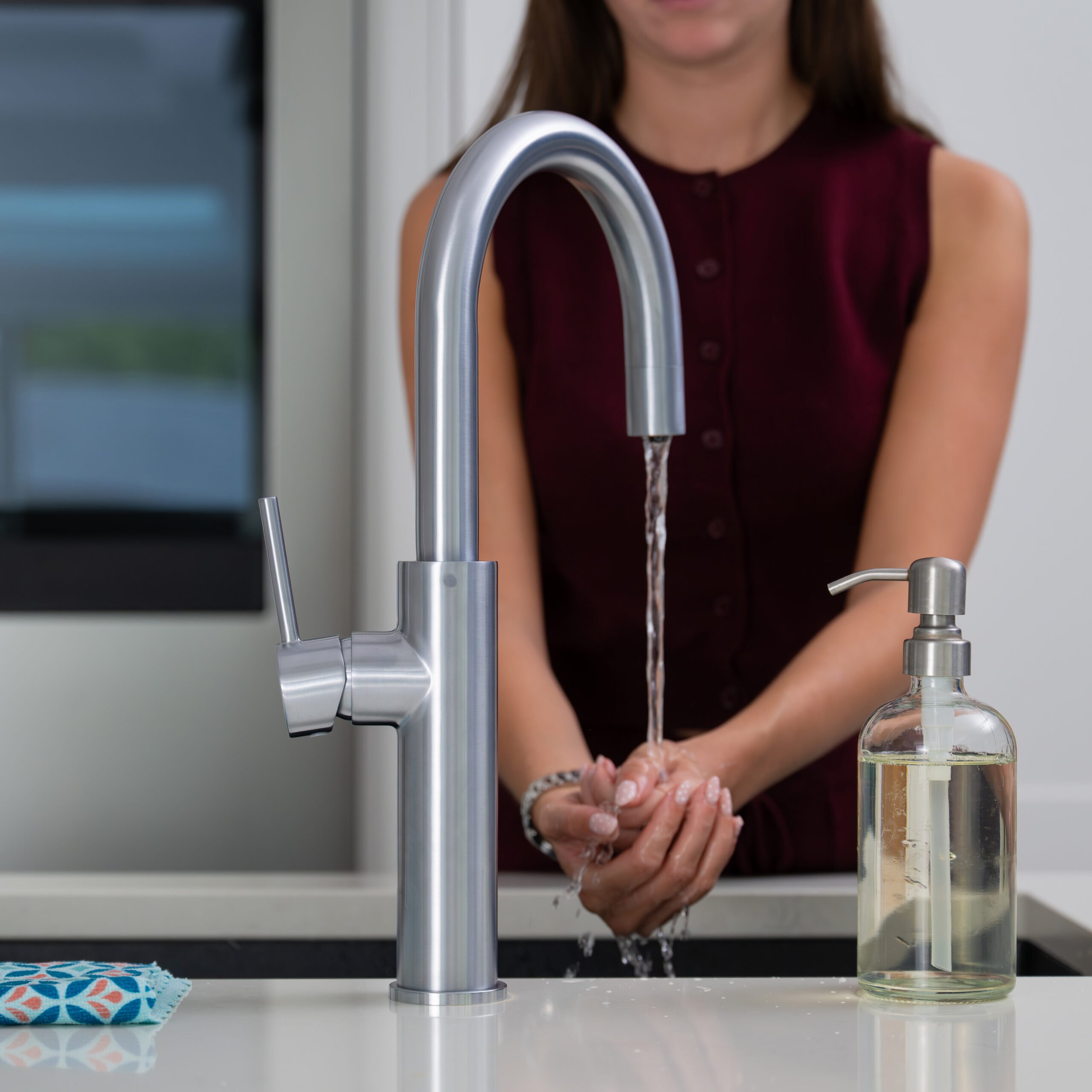

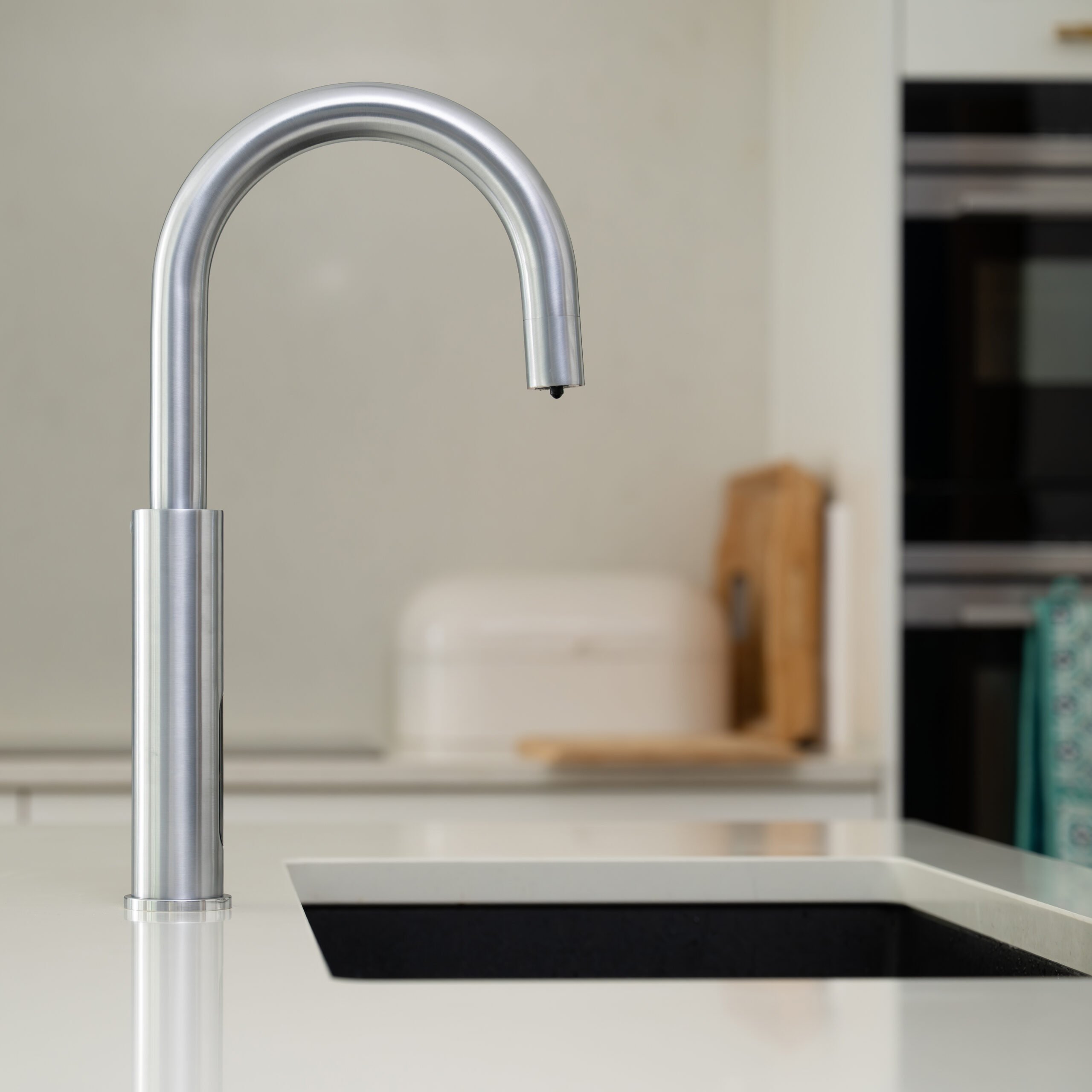

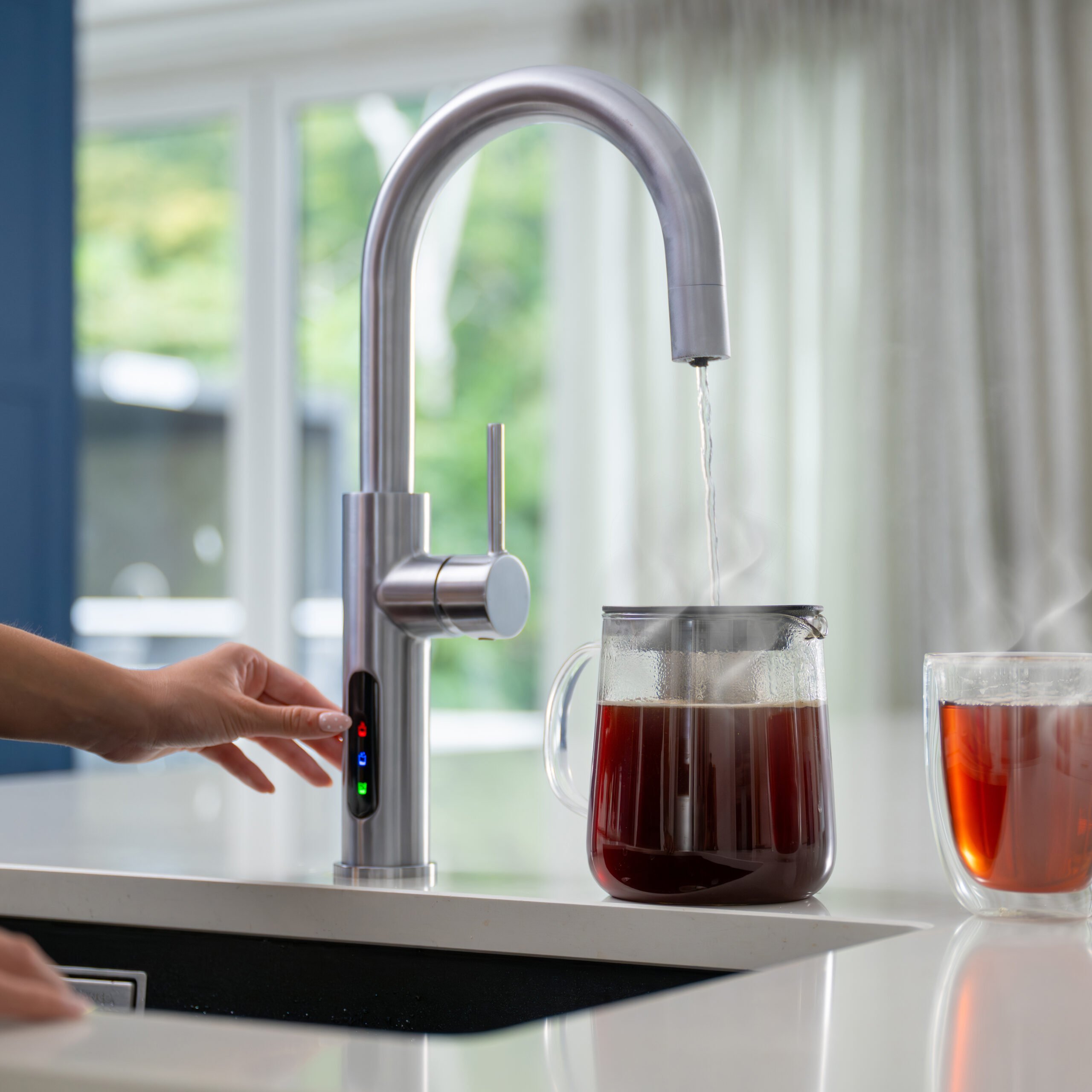

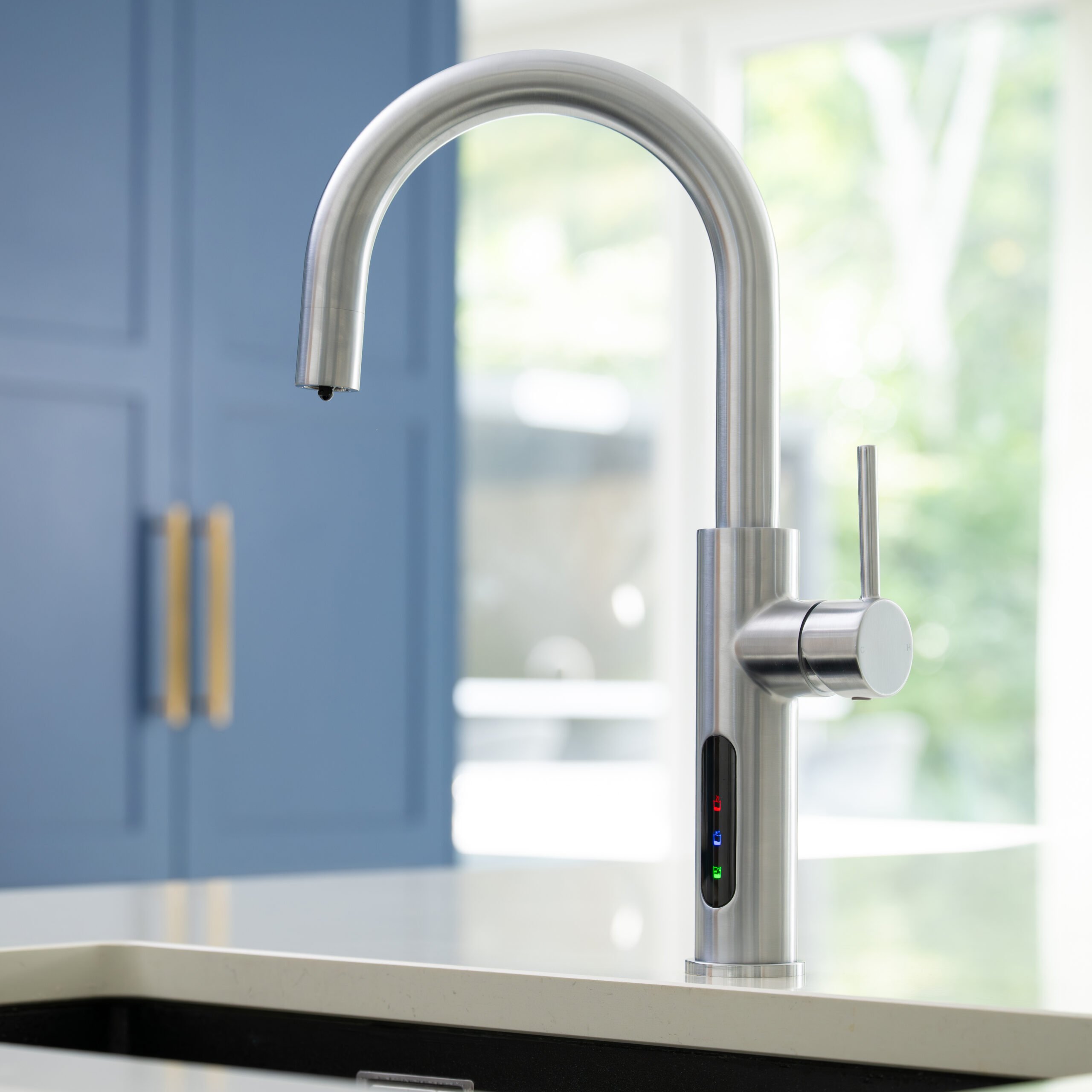

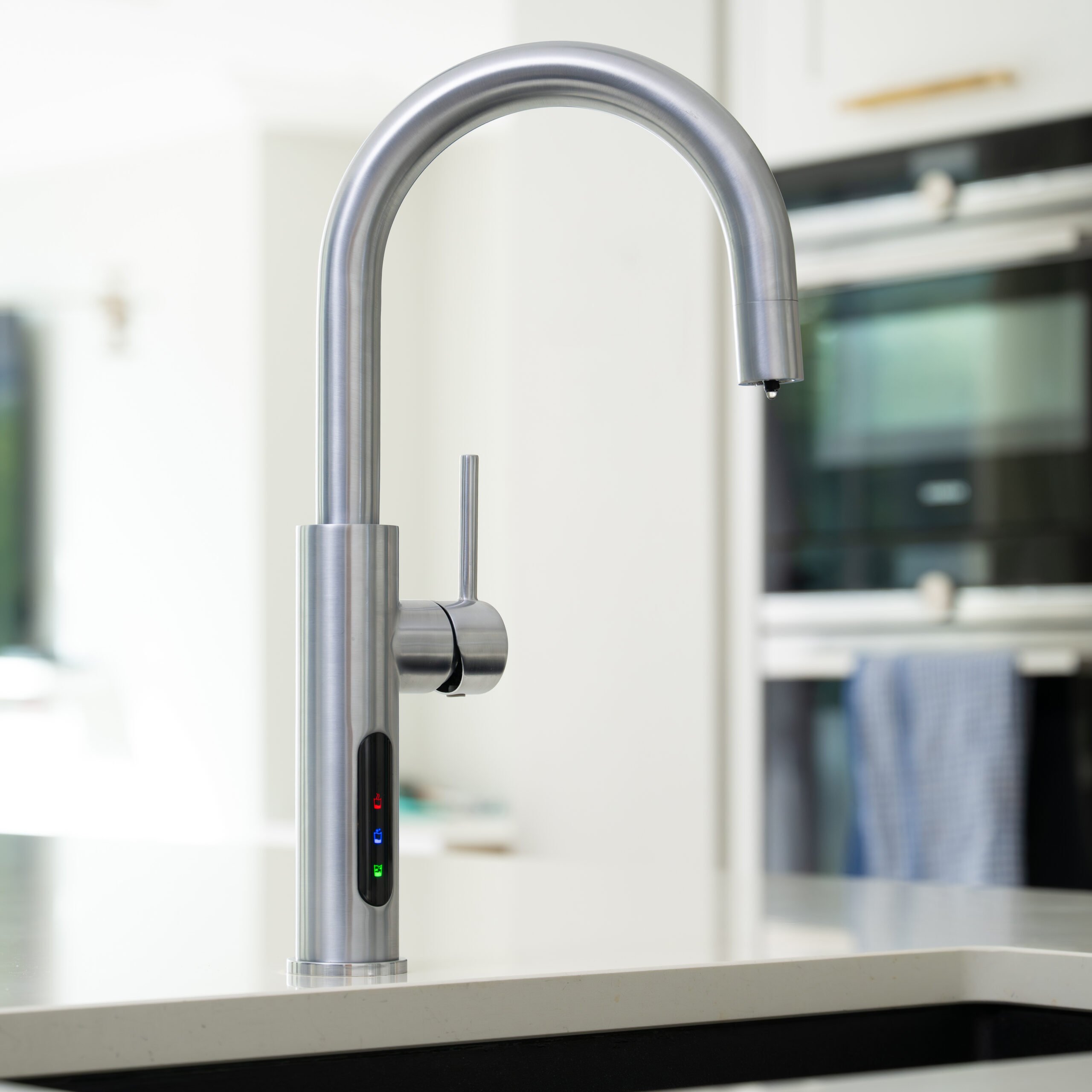

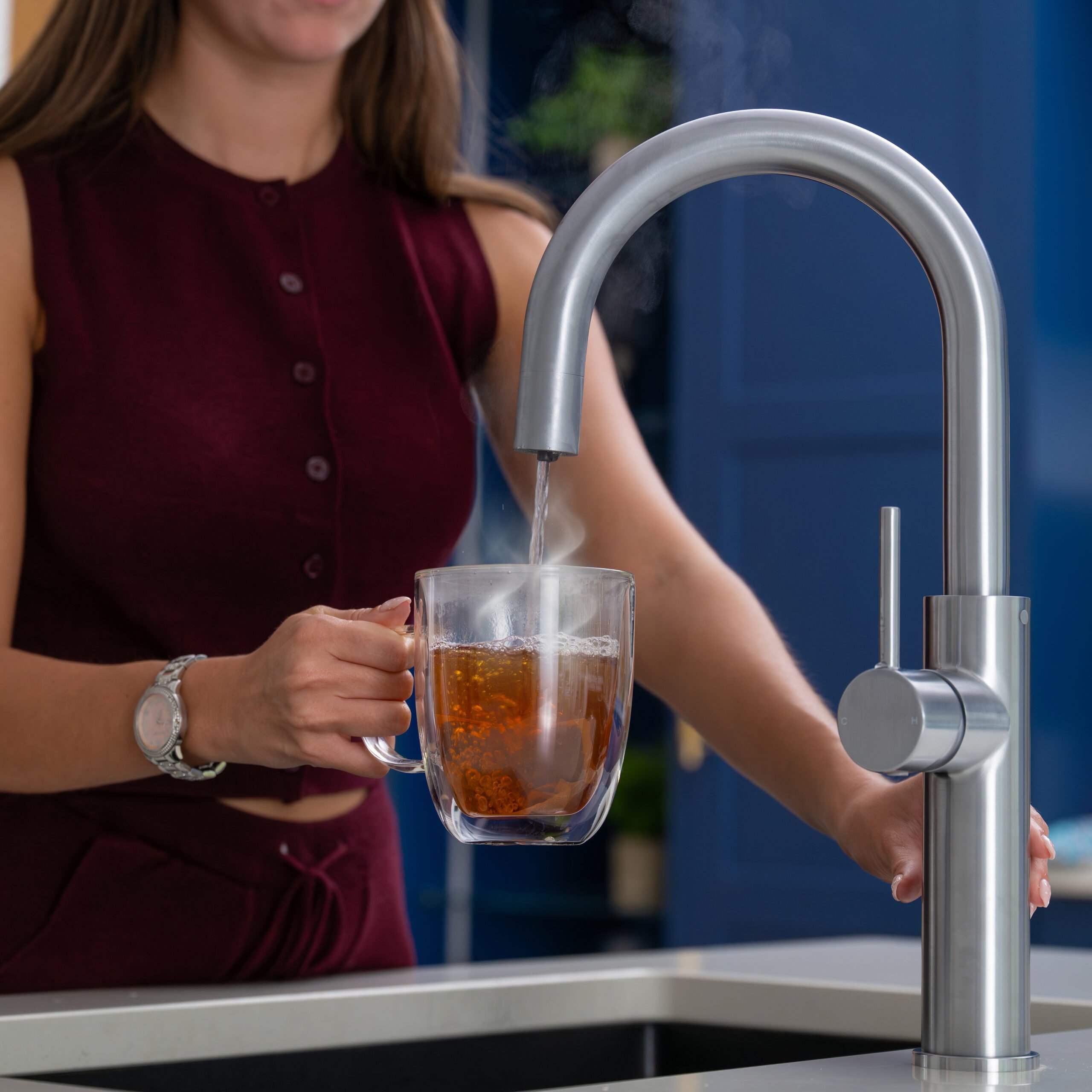

Digital 5 in 1 Sparkling Instant Boiling, Chilled Filtered Water Tap | Aquatap Fizz C Shape | Brushed Chrome

5-in-1 Tap Specification:

• Mounting: Deck or sink mount (35mm hole required)
• Tap Clearance: Minimum distance from the centre of the tap hole to the wall is 80 mm
• Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
• Cartridges: Quarter turn ceramic cartridges for ease of use and long service life
• Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
• Levers:
  • Right-hand side Hot/Cold water lever – easy to use single lever
  • Left-hand side safety sprung lock handle for child safety and additional safety feature
• Additional Features: Opposite twist for cold filtered water
• Installation: Flexible connecting hoses and tap fixing kit included
• Guarantee: 5 years

Tap Dimensions:

• Height: 397.3mm
• Spout Reach: 200mm
• Spout Width: 28mm
• Tap Hole: 35mm

————————————

2.4 litre Boiler Specification:

• Display: Front view digital touch screen – easy to read and use
• Installation: Simple and quick, normally takes no more than one hour depending on existing plumbing
• Capacity: 2.4 litres (sufficient for 7-8 cups of tea or coffee)
• Water Pressure: Minimum 1.5 bar, maximum 5.0 bar
• Temperature Range: Pre-set 55°C to 98°C with thermostat accuracy to plus/minus 0.5°C
• Heat Up Time: Approximately 8 minutes for cold water
• Materials:
  • Outer Casing: Powder coated mild steel
  • Inner Tank: Stainless steel
• Insulation: Latest technology for maximum energy efficiency
• Guarantee: Tank has a 2 year guarantee

Boiler Dimensions:

• Height: 262mm
• Width: 196mm
• Depth: 196mm

Boiler Electrical Data:

• Standard 13 amp detachable cable
• Voltage: 220-240 volt
• Power Rating: 1.5kw

————————————

Single Filter System Specification:

• Function: Filters water, protects tank from limescale build up, and improves boiling water taste
• Filters: Nano phosphate filter to prevent limescale in the tank. Removes bacteria, chlorine, and other particles
• Installation: Fits neatly under the sink with easy installation
• Replacement Cycle: Estimated every 6 months
• Filter Housing Dimensions:
  • Height: 295mm
  • Width: 80mm

What do our filters remove?

• Chlorine: 99.5%
• Trichloromethane: 95.78%
• Lead: 98.4-99.2%
• Arsenic: 97.8%-86.7%
• Iron: 99.5%
• Manganese: 98.7%

*Free Delivery is offered to UK Mainland destinations only. We will add a delivery charge to below destinations:

• Scottish Islands
• Scottish Highlands
• Northern Ireland
• Isle of Man, Jersey and Guernsey

————————————

Chiller and Sparkling unit

Dimensions:

• Height: 316mm
• Width: 188mm
• Depth: 440mm

Design:

• Designed for small under-counter spaces.

Ventilation:

• Adequate ventilation is crucial to ensure optimal performance and prevent premature failure.
• Ventilation grills are supplied free of charge to allow proper airflow through cupboard doors.
• Poor ventilation may void the warranty.
• Avoid installation in areas with ambient temperatures exceeding 30°C or near high humidity or heat sources.

Ice Bank Chilling System:

• Ensures a constant chilled temperature, adjustable between 4°C and 14°C.
• Operates effectively with an incoming water temperature of 10–32°C and a room temperature of up to 25°C.
• Important: Ensure the Ice Bank is filled with water before turning the Cooler on. Operating without water will damage the Chilling Unit.

Carbonator (WG Model):

• Offers an instant draw-off of 2.7 litres of chilled water and delivers up to 15 litres of sparkling water per hour.

• Requires a gas regulator to connect to the CO² cylinder. Only CO² cylinders up to a maximum of 2 kg are supported.
• Cylinders must be operated vertically and secured against tipping over.

Electrical Data:

• Voltage: 220V AC/50Hz
• Power Rating: 160–240 W
• Sound Pressure Level: 40–50 dB

Installation:

• Indoor use only.
• Must not be installed in areas where water jets could be used.
• Allow at least 24 hours after transportation before turning on the unit to ensure proper fluid redistribution.
• A tilt of less than 2° is required for safe operation.

Maintenance:

• Replace the filter cartridge every 6 months to prevent limescale build-up.
• The unit must not be cleaned with water jets.

Regularly inspect for leaks or damage. If found, isolate the unit, drain, and contact the manufacturer.
